10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure

Name: 109RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
Brand: Visbull
Price: 1 USD

China 10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure factory

Brand Name : Visbull

Model Number : CT18-7B

Certification : Ghost/ISO/SGS/CE

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 2000 units per month

Delivery Time : 10 working days after received L/C or your deposit

Packaging Details : Naked packing

Product Name : Mini Excavator

Operation weight : 1760KGS

Engine : Yanmar

Rated engine power : 16kw

Working pressure : 20 Mpa

Max. digging reach : 3720 mm

Max. digging depth : 2100mm

Max. digging height : 3150 mm

Contact Now

Japanese Yanmar 3NTV82A diesel engin Excavator Working Pressure 20kpa

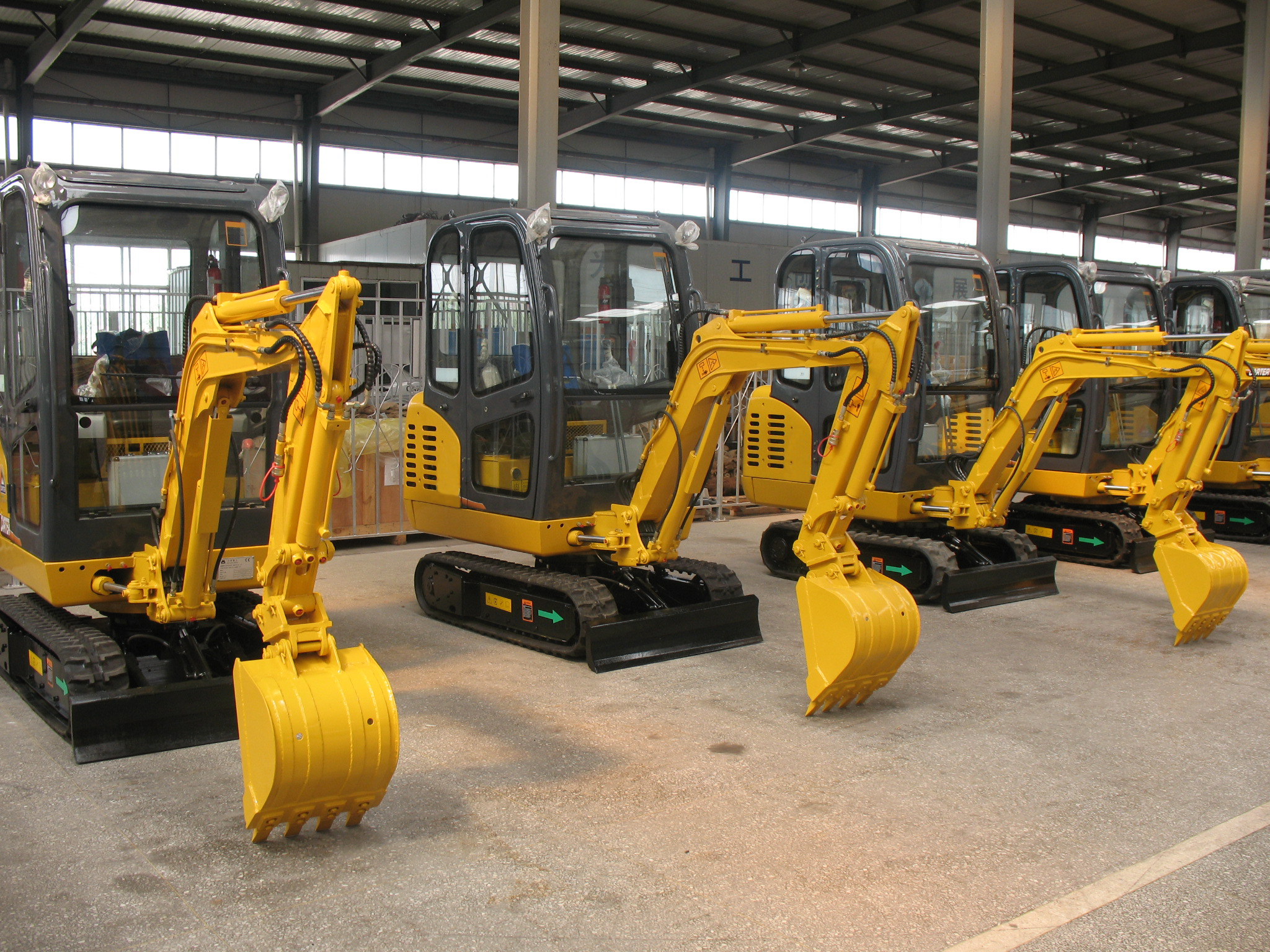

CT18-7B Crawler Excavators

Originally imported Japanese Yanmar 3NTV82A diesel engine

In conformity with the EU III emission control regulations Imported hydraulic components,

guarantee for 3 yrs under normal use and maintenance ,

South Korea made gasoline tank On-line digital monitoring and control system GPS satellite position(optional)and remote diagnose system(optional) Rubber pedrail(optional, or steel pedrail), no damage to the ground of road full opened engine hood and easy up-forward-lifted cab Cold&warm air conditioner(optional)

SPECIFICATIONS

	Operating weight	1.760 ton
	Travel speed	2.15/3.83km/h
	Bucket Capacity	0.05/0.06m3(SAE)
	Tracking force	11.54kn
	Engine power	16KW/2.200RPM
	gradeability	30°(58%)
	Swing speed	10.9RPM
	Bucket digging force	11.44 kn
	Ground Pressure	29KPa
	Arm digging force	8.04 kn

Dimensions

	Upperstructure width	1050 mm
	Undercarriage width	1080 mm
	Overall Height with cabinet	2455 mm
	Rear swing radius	1200 mm
	Clearance under counter weight	467 mm
	Tumbler Distance	1185 mm
	Ground clearance	212 mm
	Overall length for transportation	3790 mm

working range

	MAX digging radius	3720 mm
	MAX digging radius at ground lever	3640 mm
	MAX digging depth	2100 mm
	MAX digging height	3150 mm
	MAX dumping height	2070 mm
	MAX dozer cutting depth	190 mm
	MAX dozer lifting height	210 mm

HYDRAULIC SYSTEM

MAIN PUMP	TYPE
	AXIAL PISTON PUMP & GEAR PUMP
	CONSTANT POWER VARIABLE DISPACEMENT WITH GEAR PUMP OVERRIDE CONTROL
	FLOW/PRESSURE 45.8*2+37 l/MIN / 2.200 RPM / 21MPA
PILOT PUMP	TYPE
	GEAR PUMP
	FLOW/PRESSURE 22*2 L/min / 2.200 rpm / 16 mpa
	SWING MOTOR
	ATTACHMENTS
	over load pressure
BOOM / ARM /	BUCKET 20 MPA

10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
