XCMG Concrete Asphalt Paving Equipment Rental , 12 tons Hopper Capacity Road Paving Machine

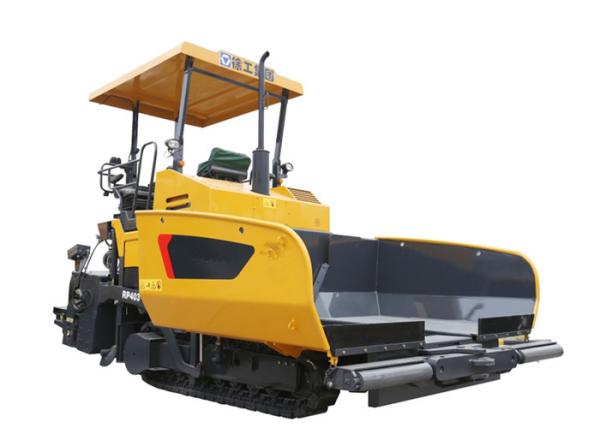

4200mm XCMG Asphalt Concrete Multi Function Paver RP403 With 200mm Paving Thickness And 12tons Hopper Capacity
Specifications:
|
ltem
|
Unit
|
Parameter
|
|
Theoretical productivity
|
t/h
|
300
|
|
Max working Width
|
m
|
4.2
|
|
Max Paving Thickness
|
mm
|
200
|
|
Paving Speed
|
m/min
|
30
|
|
Flatness
|
mm/3m
|
2
|
|
Compactness
|
%
|
≥80
|
|
Dense irregularity
|
%
|
＜5
|
|
Traveling Speed
|
km/h
|
3.6
|
|
Drive type
|
|
Crawler
|
|
Gradient Ability
|
%
|
20
|
|
Hopper Capacity
|
t
|
12
|
|
Hopper Width
|
mm
|
3215
|
|
Hopper Length
|
mm
|
1935
|
|
Engine Type
|
|
BF4M2012C
|
|
Rated Output
|
KW
|
75
|
|
Speed
|
rpm
|
2200
|
|
Fuel Tank Capacity
|
L
|
130
|
|
Weight
|
t
|
11.5～12
|
|
Overall Dimension
|
mm
|
5535×1800×3580
|
RP403 asphalt paver is the first fully hydraulic crawler small paver, the machine
uses full hydraulic drive, electro hydraulic proportional control, a high level of
automation, good handling, system configuration and paving of high quality.
Advantages:
1 . Crawler device about independent drive system uses micro computer
control, traction, steering smooth and flexible;
2 . 1.8 meters wide compact body design, coupled with the steering can place the
walking function, making it .
3 .Particularly suitable for confined areas and Bent Road Pavement construction
operations, the aircraft can be used in sidewalks, bike paths, farm roads, residential
roads and other small paved roads, and conservation of the job grade highway.
4 . Large capacity hopper and the hopper can be independently controlled about
adaptability broader, more flexible;
5 . Power reserve sufficient, and about crawler is independently driven, the driving
force is stronger, more stable running;
6 . Narrow fuselage, with a hydraulic telescopic screed, transitions and more
convenient, easier operation;
7 . Optional narrowing means the minimum paving width of only 0.8 meters, suitable
for road maintenance operations.
