Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling

Name: Nissan Engine LPG Gasoline Propane Powered Forklift for 25 Ton Material Handling
Brand: KUDAT
Price: 1 USD

China Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling factory

Brand Name : KUDAT

Model Number : CPQYD25

Certification : ISO / CE

Place of Origin : CHINA

MOQ : 1 unit

Price : negotiation

Payment Terms : L/C at sight, T/T or western Union

Supply Ability : 1500 units per month

Delivery Time : 15 working days after received L/C or your deposit

Packaging Details : Naked packing in container

Power type : Diesel

Rated capacity : 2500 kg

Load center : 500 mm

Mast Lifting height : 3000 mm

Max. grade ability : 20%

Free lift height : 240 mm

Fork size(L*W*T) : 1070×125×45 mm

Min Turning Radius : 2230 mm

Max Driving speeds : 17.5 / 20 km/h

Total weight : 3600 kg

Contact Now

Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling

2.5Ton Material Handling Equipment LPG Gasoline Forklift With Nissan Engine Imported From Japan

Description:
Load capacity: 2500 kg
Side-put lifting cylinder and chains offer wide-view visibility
The composite wheel is easy for maintain and adjustment.
The steering system is agile and convenient, the buffer device reduce the vehicle vibration.
The engine has good performance: It has virtues in operation in stability, low noise, low vibration and low fuel consumption
Japanese Nissan K21engine

Main Features:
1. Dual air filter
2. Up exhaust
3. Comfortable fluorescent panel
4. Hydraulic transmission

Specifications:

Model		Unit	CPQYD25
Power type			Gasoline
Rated capacity		kg	2500
Load center		mm	500
Mast Lifting height		mm	3000
Free lift height		mm	240
Fork size(LWT)		mm	1070×125×45
Tilting Angles(Front/Rear)		deg	6°/12°
Front overhang		mm	485
Exterior Size	Length without fork	mm	2580
	Overall width	mm	1160
	Mast drop	mm	1995
	Max. lift	mm	4030
	Front-wheel Overhead	mm	2070
Min Turning Radius		mm	2230
Min. intersecting aisle		mm	2000
Speeds	Max Driving speeds	km/h	17.5/20
	Lifting speeds	mm/s	500/530
	Lowering speeds	mm/s	540/550
Max. grade ability		%	18
Total weight		kg	3600
Tires	Front		7.00-12-12PR
Tires	Rear		6.00-9-10PR
Wheelbase		mm	1600
Tread	Front	mm	970
Tread	Rear	mm	970
Min. ground clearance		mm	110
Engine	Model		Chinese BY491 Gasoline engine
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/1800
	No. of cylinder		4
	Displacement	L	2.54
Fuel tank capacity		L	52

Product Tags:

heavy duty forklifts

power lift forklift

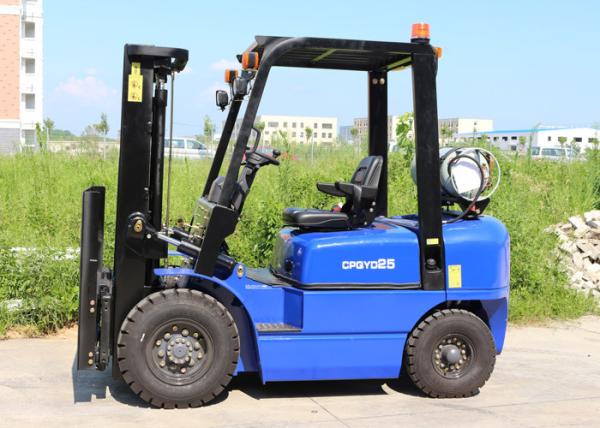

Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling Images
